PCD wire drawing die blanks

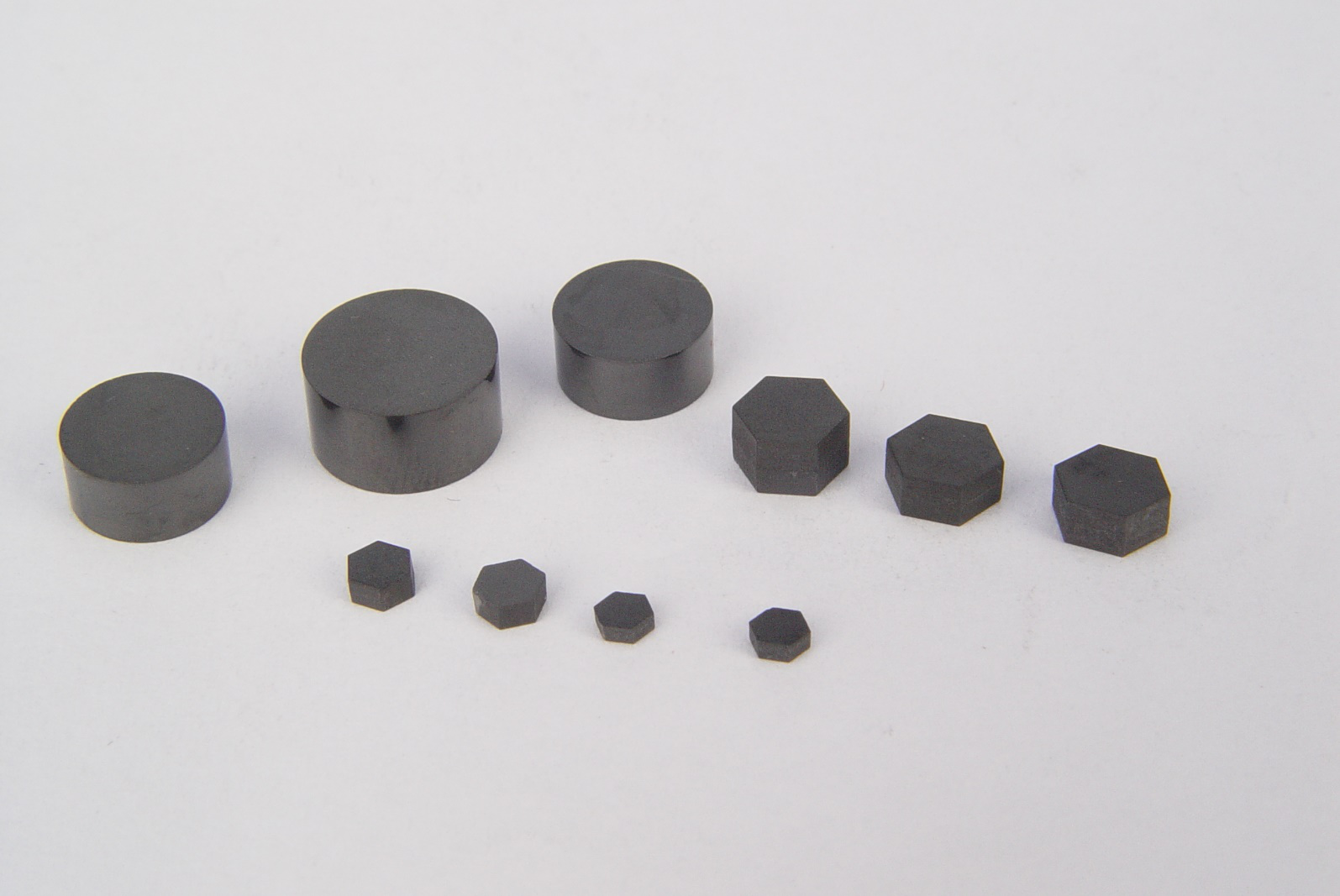

Sike diamond drawing die blankTMis a diamond powder in a variety of metal (containing cobalt) catalyst, the use of ultra-high temperature and ultra-high pressure sintering process. During the sintering process, high-strength diamond bonds are formed between the diamond microcrystals, which strongly bind the diamond particles together to form polycrystalline diamond (PCD). The diamond wire drawing die blank manufactured by this method not only has high wear resistance, hardness and thermal conductivity, but also has good mechanical strength and toughness. It is suitable for drawing non-ferrous metals such as copper, aluminum, nickel, stainless steel and various alloy wires. Depending on the needs of the wire drawing application, each series has0.5μm, 1μm,3 μm, 5 μm, 10 μm, 25 μm and 50 μmand other particle size of the drawing die blank for the majority of users to choose. Sike diamond drawing die blankTMis divided into the following series.
SL SeriesTMis a drawing die blank without outer ring support, divided into six square(SLH)and circular(SLR)two kinds. These specifications of the drawing die blank is suitable for various types of wire drawing applications, because of the low price, especially suitable for the larger consumption of wire drawing die.TSL SeriesTMis a wire drawing die blank supported by cemented carbide ring, which is characterized by polycrystalline diamond core and cemented carbide support ring closely sintered as a whole, by the support ring to improve the crack strength of the mold blank, so this kind of products can withstand high strength and high speed drawing.
Custom Services:In order to meet the special requirements of Chinese and foreign users in production, we can provide other specifications of diamond wire drawing die blank on demand. Please continue to browse the following product specifications size table, if you need the size is not one of them, please inform your product requirements, so that we can get in touch with you in time.
1.SLHSeries:drawing die blank without outer ring (hexagonal)
●available products ○No products
|
|
||||||||||||
|
Sike code |
ADDMACode |
Product Size(mm) |
Maximum recommended aperture(mm) |
average particle size( |
||||||||
|
D |
d |
T |
0.5 |
1 |
3 |
5 |
10 |
25 |
50 |
|||
|
SLH2010 |
|
- |
2.0 |
1.0 |
0.3 |
● |
● |
● |
● |
● |
● |
● |
|
SLH2510 |
D6 |
- |
2.5 |
1.0 |
0.4 |
● |
● |
● |
● |
● |
● |
● |
|
SLH3110 |
|
- |
3.1 |
1.0 |
0.6 |
● |
● |
● |
● |
● |
● |
● |
|
SLH3215 |
D12 |
- |
3.2 |
1.5 |
1.0 |
● |
● |
● |
● |
● |
● |
● |
|
SLH4020 |
|
- |
4.0 |
2.0 |
1.3 |
● |
● |
● |
● |
● |
● |
● |
|
SLH4525 |
|
- |
4.5 |
2.5 |
1.4 |
● |
● |
● |
● |
● |
● |
● |
|
SLH4725 |
|
- |
4.7 |
2.5 |
1.5 |
● |
● |
● |
● |
● |
● |
● |
|
SLH4730 |
|
- |
4.7 |
3.0 |
1.5 |
● |
● |
● |
● |
● |
● |
● |
|
SLH5030 |
|
- |
5.0 |
3.0 |
1.6 |
● |
● |
● |
● |
● |
● |
● |
|
SLH5225 |
D15 |
- |
5.2 |
2.5 |
1.5 |
● |
● |
● |
● |
● |
● |
● |
|
SLH5235 |
D18 |
- |
5.2 |
3.5 |
2.0 |
● |
● |
● |
● |
● |
● |
● |
|
SLH6040 |
|
- |
6.0 |
4.0 |
2.5 |
○ |
● |
● |
● |
● |
● |
● |
2. SLRSeries:drawing die blank without outer ring (round)
●available products ○No products
|
Sike code |
ADDMA Code |
Product Size (mm) |
maximum recommended hole diameter (mm) |
average particle size (um) |
|
||||||||
|
|
|
D |
d |
T |
|
0.5 |
1 |
3 |
5 |
10 |
25 |
50 |
|
|
SLR2010 |
|
- |
2.0 |
1.0 |
0.3 |
● |
● |
● |
● |
● |
● |
● |
|
|
SLR2510 |
D6 |
- |
2.5 |
1.0 |
0.4 |
● |
● |
● |
● |
● |
● |
● |
|
|
SLR3110 |
|
- |
3.1 |
1.0 |
0.5 |
● |
● |
● |
● |
● |
● |
● |
|
|
SLR3115 |
|
- |
3.1 |
1.5 |
1.0 |
● |
● |
● |
● |
● |
● |
● |
|
|
SLR3215 |
D12 |
- |
3.2 |
1.5 |
1.0 |
● |
● |
● |
● |
● |
● |
● |
|
|
SLR4020 |
|
- |
4.0 |
2.0 |
1.3 |
● |
● |
● |
● |
● |
● |
● |
|
|
SLR4525 |
|
- |
4.5 |
2.5 |
1.4 |
● |
● |
● |
● |
● |
● |
● |
|
|
SLR4725 |
|
- |
4.7 |
2.5 |
1.5 |
● |
● |
● |
● |
● |
● |
● |
|
|
SLR4730 |
|
- |
4.7 |
3.0 |
1.5 |
● |
● |
● |
● |
● |
● |
● |
|
|
SLR5030 |
|
- |
5.0 |
3.0 |
1.6 |
● |
● |
● |
● |
● |
● |
● |
|
|
SLR5225 |
D15 |
- |
5.2 |
2.5 |
1.5 |
● |
● |
● |
● |
● |
● |
● |
|
|
SLR5235 |
D18 |
- |
5.2 |
3.5 |
2.0 |
● |
● |
● |
● |
● |
● |
● |
|
|
SLR6040 |
|
|
6.0 |
4.0 |
2.5 |
○ |
● |
● |
● |
● |
● |
● |
|
|
SLR8040 |
D21 |
- |
8.0 |
4.0 |
3.0 |
○ |
● |
● |
● |
● |
● |
● |
|
|
SLR9853 |
D24 |
|
9.8 |
5.3 |
4.0 |
○ |
○ |
● |
● |
● |
● |
● |
|
|
SLR10060 |
|
|
10.0 |
6.0 |
4.5 |
○ |
○ |
● |
● |
● |
● |
● |
|
|
SLR12060 |
|
|
12.0 |
6.0 |
5.0 |
○ |
○ |
○ |
● |
● |
● |
● |
|
|
SLR12070 |
|
|
12.0 |
7.0 |
5.0 |
○ |
○ |
○ |
● |
● |
● |
● |
|
|
SLR13080 |
|
|
13.0 |
8.0 |
6.0 |
○ |
○ |
○ |
○ |
● |
● |
● |
|
|
SLR140100 |
|
|
14.0 |
10.0 |
6.0 |
○ |
○ |
○ |
○ |
● |
● |
● |
|
|
SLR16080 |
|
|
16.0 |
8.0 |
7.0 |
○ |
○ |
○ |
○ |
● |
● |
● |
|
|
SLR160100 |
|
|
16.0 |
10.0 |
7.0 |
○ |
○ |
○ |
○ |
● |
● |
● |
|
|
SLR18080 |
|
|
18.0 |
8.0 |
8.0 |
○ |
○ |
○ |
○ |
● |
● |
● |
|
|
SLR180100 |
|
|
18.0 |
10.0 |
8.0 |
○ |
○ |
○ |
○ |
● |
● |
● |
|
|
SLR160120 |
|
|
16.0 |
12.0 |
|
○ |
○ |
○ |
○ |
● |
● |
○ |
New |
|
SLR160150 |
|
|
16.0 |
15.0 |
|
○ |
○ |
○ |
○ |
● |
● |
○ |
New |
|
SLR190120 |
|
|
19.0 |
12.0 |
|
○ |
○ |
○ |
○ |
● |
● |
○ |
New |
|
SLR190150 |
|
|
19.0 |
15.0 |
|
○ |
○ |
○ |
○ |
● |
● |
○ |
New |
|
SLR220100 |
|
|
22.0 |
10.0 |
|
○ |
○ |
○ |
○ |
● |
● |
○ |
New |
|
SLR220120 |
|
|
22.0 |
12.0 |
|
○ |
○ |
○ |
○ |
● |
● |
○ |
New |
|
SLR240120 |
|
|
24.0 |
12.0 |
|
○ |
○ |
○ |
○ |
● |
● |
○ |
New |
|
SLR240140 |
|
|
24.0 |
14.0 |
|
○ |
○ |
○ |
○ |
● |
● |
○ |
New |
3. TSLSeries:Cemented carbide outer ring drawing die blank (round)
●available products ○No products
|
Sike code |
ADDMA * Code |
Product Size (mm) |
maximum recommended hole diameter (mm) |
average particle size ( |
|
||||||||
|
|
|
D |
d |
T |
|
0.5 |
1 |
3 |
5 |
10 |
25 |
50 |
|
|
TSL4015 |
D12 |
8.12 |
4.0 |
1.5 |
1.0 |
● |
● |
● |
● |
● |
● |
● |
|
|
TSL4023 |
D15 |
8.12 |
4.0 |
2.3 |
1.8 |
● |
● |
● |
● |
● |
● |
● |
|
|
TSL4029 |
D18 |
8.12 |
4.0 |
2.9 |
2.3 |
● |
● |
● |
● |
● |
● |
● |
|
|
TSL7040 |
D21 |
13.65 |
7.0 |
4.0 |
3.5 |
○ |
● |
● |
● |
● |
● |
● |
|
|
TSL7053 |
D24 |
13.65 |
7.0 |
5.3 |
4.6 |
○ |
● |
● |
● |
● |
● |
● |
|
|
TSL13086 |
D27 |
24.13 |
13.0 |
8.6 |
5.8 |
○ |
○ |
○ |
○ |
● |
● |
● |
|
|
TSL130116 |
D30 |
24.13 |
13.0 |
11.6 |
7.6 |
○ |
○ |
○ |
○ |
● |
● |
● |
|
|
TSL150116 |
D31 |
24.13 |
15.0 |
11.6 |
8.0 |
○ |
○ |
○ |
○ |
● |
● |
● |
|
|
TSL150150 |
D33 |
24.13 |
15.6 |
15.1 |
10.5 |
○ |
○ |
○ |
○ |
● |
● |
○ |
New |
|
TSL180150 |
D33 |
30.00 |
18.3 |
13.5 |
11.2 |
○ |
○ |
○ |
○ |
● |
● |
○ |
New |
Note:
1. ADDMA: American Diamond Die Manufacturers Association
2. The mold blank must be set below 650 ℃
3. The maximum recommended aperture is suitable for non-ferrous metal flexible wire, and the diameter of the hard wire cannot exceed 65% of the recommended aperture
4. Syke Code
